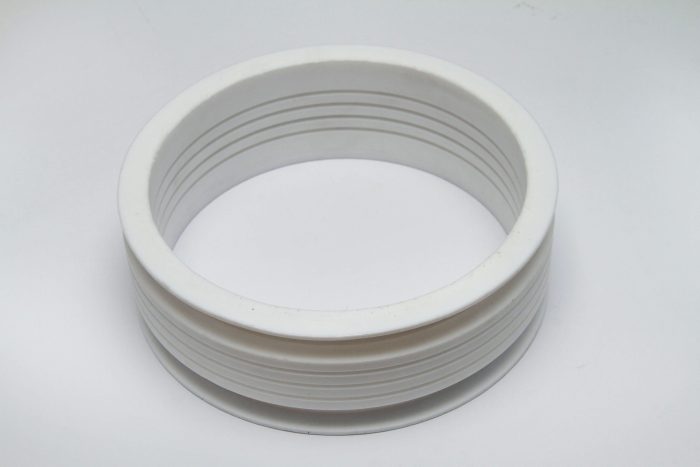

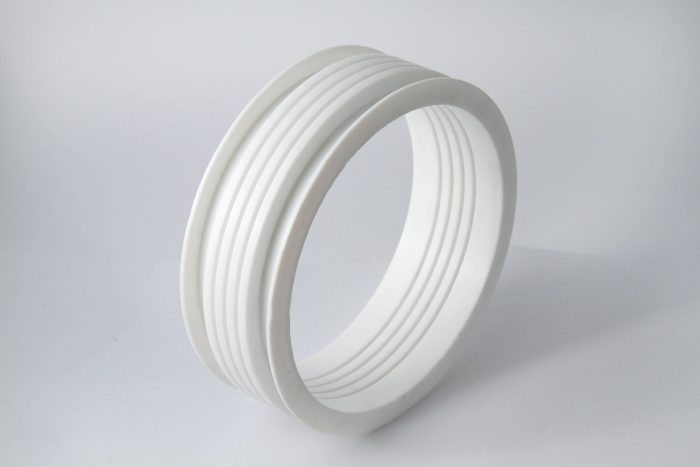

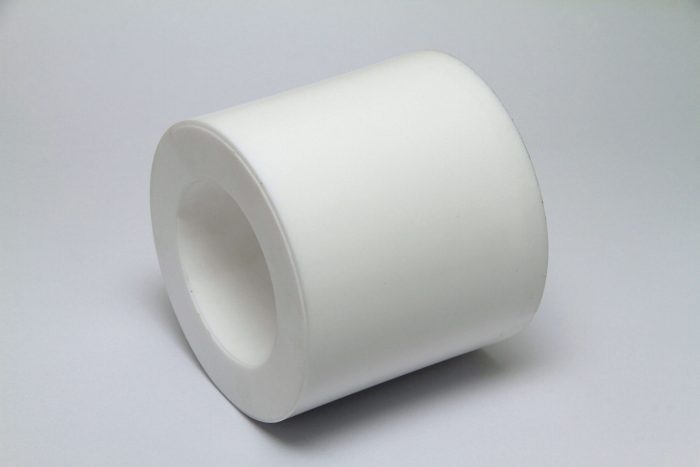

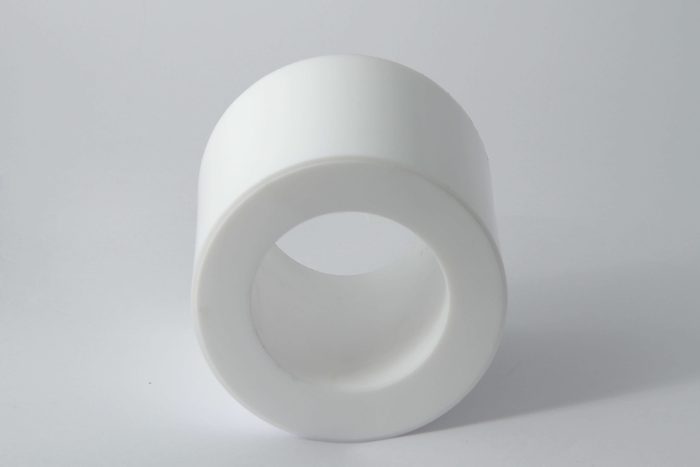

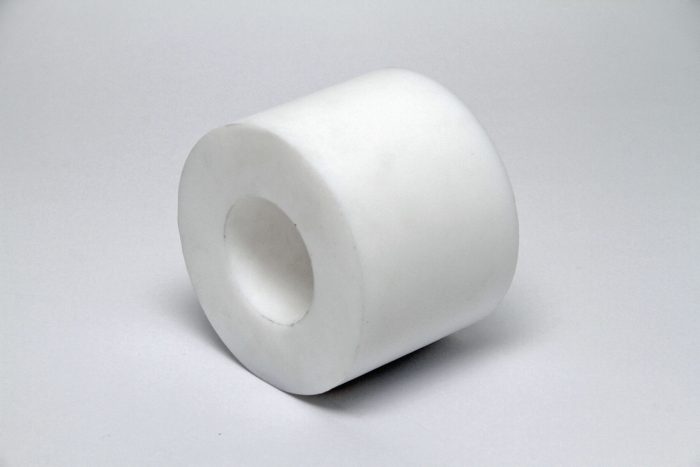

Custom molded bushings in pure PTFE (Teflon®) or with loads in external dimensions of up to 1,000 mm and with the most varied lengths, according to your needs.
Remember, here at Tecnoflon we customize your bushings according to your size needs.
| Ø External | Ø Internal | Max. Height | ||
| (mm) | (in) | (mm) | (in) | (mm) |
| 51,0 | 2,0 | 25,0 | 1,0 | 200,0 |
| 51,0 | 2,0 | 31,0 | 1,3 | 150,0 |
| 57,0 | 2,3 | 25,0 | 1,0 | 250,0 |
| 57,0 | 2,3 | 31,0 | 1,3 | 200,0 |
| 57,0 | 2,3 | 44,0 | 1,8 | 100,0 |
| 63,5 | 2,5 | 25,0 | 1,0 | 300,0 |
| 63,5 | 2,5 | 31,0 | 1,3 | 250,0 |
| 63,5 | 2,5 | 44,0 | 1,8 | 150,0 |
| 63,5 | 2,5 | 50,0 | 2,0 | 108,0 |
| 70,0 | 2,8 | 25,0 | 1,0 | 300,0 |
| 70,0 | 2,8 | 31,0 | 1,3 | 300,0 |
| 70,0 | 2,8 | 44,0 | 1,8 | 200,0 |
| 70,0 | 2,8 | 50,0 | 2,0 | 150,0 |
| 76,0 | 3,0 | 25,0 | 1,0 | 300,0 |
| 76,0 | 3,0 | 31,0 | 1,3 | 300,0 |
| 76,0 | 3,0 | 44,0 | 1,8 | 250,0 |
| 76,0 | 3,0 | 50,0 | 2,0 | 200,0 |
| 76,0 | 3,0 | 57,0 | 2,3 | 150,0 |
| 83,0 | 3,3 | 31,0 | 1,3 | 300,0 |
| 83,0 | 3,3 | 44,0 | 1,8 | 300,0 |
| 83,0 | 3,3 | 50,0 | 2,0 | 250,0 |
| 83,0 | 3,3 | 63,0 | 2,5 | 150,0 |
| 83,0 | 3,3 | 70,0 | 2,8 | 100,0 |
| 89,0 | 3,5 | 31,0 | 1,3 | 300,0 |
| 89,0 | 3,5 | 50,0 | 2,0 | 300,0 |
| 89,0 | 3,5 | 63,0 | 2,5 | 200,0 |
| 89,0 | 3,5 | 70,0 | 2,8 | 150,0 |
| 102,0 | 4,0 | 31,0 | 1,3 | 300,0 |
| 102,0 | 4,0 | 50,0 | 2,0 | 300,0 |
| 102,0 | 4,0 | 70,0 | 2,8 | 250,0 |
| 102,0 | 4,0 | 82,0 | 3,3 | 150,0 |
| 115,0 | 4,5 | 50,0 | 2,0 | 300,0 |
| 115,0 | 4,5 | 63,0 | 2,5 | 300,0 |
| 115,0 | 4,5 | 76,0 | 3,0 | 300,0 |
| 115,0 | 4,5 | 89,0 | 3,5 | 300,0 |
| 127,0 | 5,0 | 50,0 | 2,0 | 300,0 |
| 127,0 | 5,0 | 63,0 | 2,5 | 300,0 |
| 127,0 | 5,0 | 76,0 | 3,0 | 300,0 |
| 127,0 | 5,0 | 89,0 | 3,5 | 300,0 |
| 127,0 | 5,0 | 101,0 | 4,0 | 300,0 |
| 140,0 | 5,5 | 50,0 | 2,0 | 300,0 |
| 140,0 | 5,5 | 63,0 | 2,5 | 300,0 |
| 140,0 | 5,5 | 76,0 | 3,0 | 300,0 |
| 140,0 | 5,5 | 89,0 | 3,5 | 300,0 |
| 140,0 | 5,5 | 101,0 | 4,0 | 300,0 |
| 140,0 | 5,5 | 114,0 | 4,5 | 300,0 |
| 152,0 | 6,0 | 50,0 | 2,0 | 300,0 |
| 152,0 | 6,0 | 76,0 | 3,0 | 300,0 |
| 152,0 | 6,0 | 89,0 | 3,5 | 300,0 |
| 152,0 | 6,0 | 101,0 | 4,0 | 300,0 |
| 152,0 | 6,0 | 127,0 | 5,0 | 300,0 |
| 165,0 | 6,5 | 50,0 | 2,0 | 300,0 |
| 165,0 | 6,5 | 76,0 | 3,0 | 300,0 |
| 165,0 | 6,5 | 101,0 | 4,0 | 300,0 |
| 165,0 | 6,5 | 127,0 | 5,0 | 300,0 |
| 165,0 | 6,5 | 140,0 | 5,5 | 300,0 |
| 178,0 | 7,0 | 50,0 | 2,0 | 300,0 |
| 178,0 | 7,0 | 82,0 | 3,3 | 300,0 |
| 178,0 | 7,0 | 114,0 | 4,5 | 300,0 |
| 178,0 | 7,0 | 140,0 | 5,5 | 300,0 |
| 178,0 | 7,0 | 152,0 | 6,0 | 300,0 |
| 190,0 | 7,5 | 50,0 | 2,0 | 300,0 |
| 190,0 | 7,5 | 76,0 | 3,0 | 300,0 |
| 190,0 | 7,5 | 101,0 | 4,0 | 300,0 |
| 190,0 | 7,5 | 140,0 | 5,5 | 300,0 |
| 190,0 | 7,5 | 165,0 | 6,5 | 300,0 |
| 203,0 | 8,0 | 63,0 | 2,5 | 300,0 |
| 203,0 | 8,0 | 89,0 | 3,5 | 300,0 |
| 203,0 | 8,0 | 127,0 | 5,0 | 300,0 |
| 203,0 | 8,0 | 152,0 | 6,0 | 300,0 |
